CAD designing department

Important features of 3D designing are being able to verify the three dimensional shape and simulate the actual movements of the parts easily. In the past using 2D designing parts were not compatible with each other so they had to be designed again and parts had to be produced again leading to cost increasing. I am pretty sure that some of you have had experiences like this. Many people have the idea that 3D designing balloons the cost, but first of all please ask us for advice, we can give total cost support. Daiwa MT is proud of having a high level 3 designing facility, please experience our sevices.

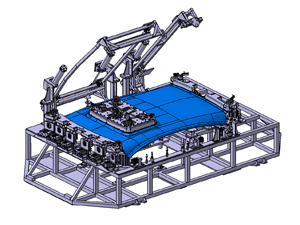

CAD designed drawing of ROOF wrap-around jig
(wrap around OPEN)

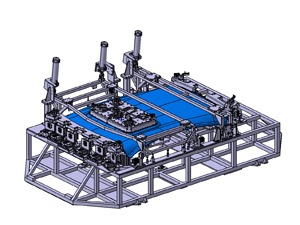

CAD designed drawing of ROOF wrap-around jig
(wrap around CLOSE)

CATIA V5
Translator SpGate
